Performance Series Chambers

Maximize with our mid-size.

Combining functionality and comfort with a 27” diametric design to provide patients with increased freedom of movement, yet small enough to fit into any room. Dual control valve technology for physician / self-treatment, in addition to double-sided 44 oz. urethane coated polyester offers an ergonomic design and more importantly impeccable safety specifications. Three large patient viewing windows illuminate the interior with room light. Strategically angled air-in port and tamper-proof redundant pressure regulators maintains consistent circulatory air flow within the chamber during treatments. The practical design concept and medical grade components ensures durability and functionality that will last for years.

• 1.3 ATA (4 psi) operating pressure
• Durable, double-sided 44 oz. urethane coated polyester bladder
• Tamper-proof, dual redundant pressure regulator valves
• Patented 2-zipper seal assemblies
• Designed for improved airflow through chamber during treatments
• Additional port for external medical pass-through devices
• Manufactured with nontoxic, medical grade components
• Rigid frame that maintains form when deflated
• Standard – Mattress contoured to fit inside the chamber

WEIGHT

Bladder: 27 lbs (12.24 kgs)

Bolsters: 7 lbs (3.17 kgs)

Compressor: 24 lbs (10.88 kgs)

Frame: 16 lbs (7.25 kgs)

Mattress: 10 lbs (4.53 kgs)

DIMENSIONS

Length: 88 in (223.52 cm)

Diameter (inflated): 27 in (68.58 cm)

Our newest and most innovative design, the Quamvis320® is the most secure, portable soft-walled chamber on the market. A spacious 32" diametric interior and exterior frame concept provides a large, non-obstructive interior and unique support system for patients to enter/exit the chamber with ease. This chamber can fit two adults and is fully equipped with dual pressure control valves for physician and self-treatment capabilities. Strategically angled air-in port and tamper-proof redundant pressure regulators maintains consistent circulatory air flow within the chamber. Extreme performance reinforced ballistic nylon jacket and external “SafeSet” buckling system make this chamber exceed our superlative safety specifications, while remaining practical for clinical and personal use. This cutting-edge design with all medical grade components ensures safe and long lasting functionality for years.

• 1.3 ATA (4 psi) operating pressure
• Durable, double-sided 44 oz. urethane coated polyester bladder
• Pressure tested beyond 30 psi to exceed PVHO-1 safety requirements
• Extreme performance reinforcing ballistic nylon jacket
• “SafeSet” buckling system for additional secure enclosure support 3-zipper seal assembly
• Rigid external steel frame for patient stabilization and added comfort
• Tamper-proof redundant pressure regulators
• 3 additional ports for external medical pass-through devices
• Mattress contoured to fit inside the chamber
• Manufactured with nontoxic, medical grade components
• Analog pressure gauge

Bladder: 38 lbs (17.23 kgs)

Frame: 34 lbs (15.42 kgs)

Mattress: 13 lbs (5.89 kgs)

Bolsters: 7 lbs (3.17 kgs)

Compressor: 37 lbs (16.78 kgs)

Length: 100 in (254 cm)

Diameter (inflated): 32 in (81.28 cm)

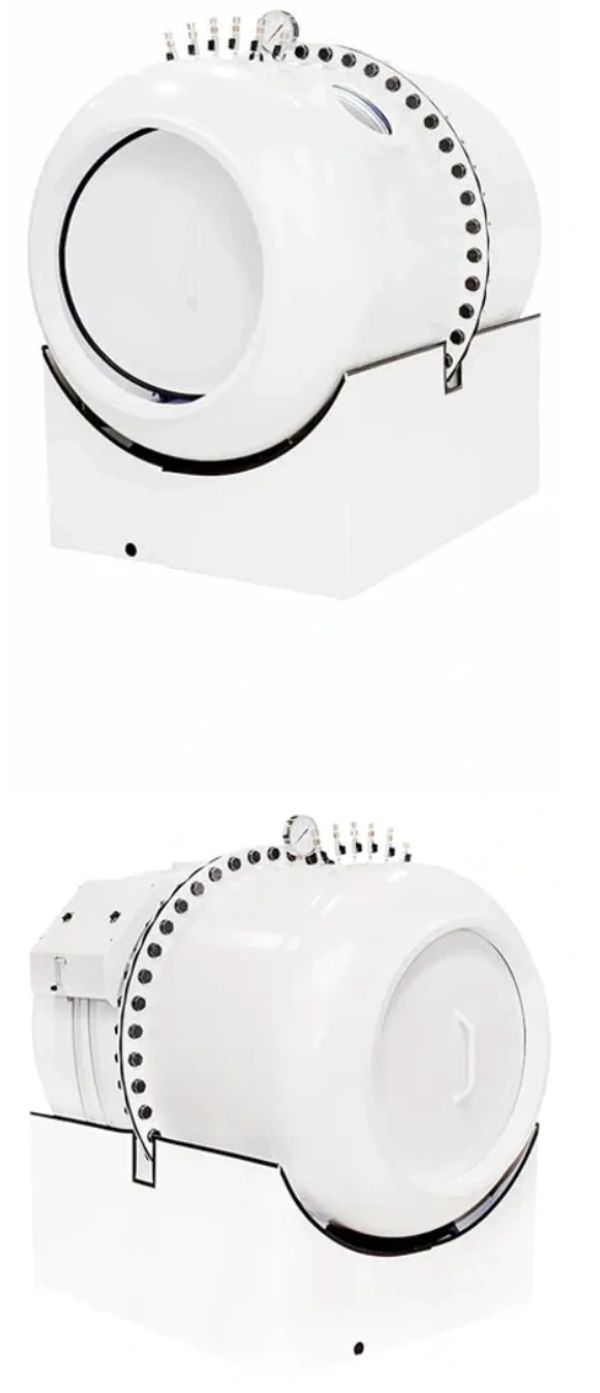

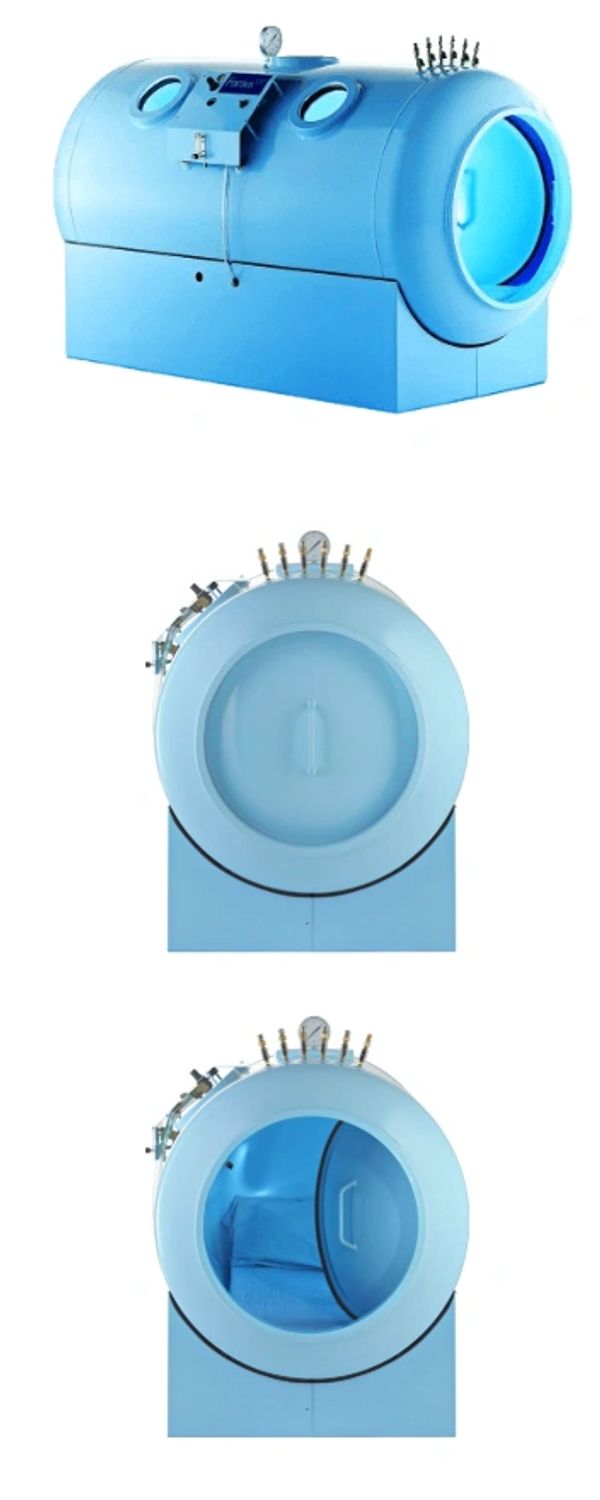

Our second largest and most versatile hyperbaric chamber Fortius420 EXP is a market favorite. It comes with the capability of treating patients in up to 3.0 ATA (29 psi) operating pressure. This chamber boasts a considerable 42" diametric interior and is 62 inches in length. However, despite its large size, the Fortius420 EXP has been designed to fit in most offices and clinics. The hybrid alloy hyperbaric chamber comes fitted with mirrored controls on the interior and exterior. To make the treatment safe for the patient and cost-effective for the physicians, this particular chamber can release 100% oxygen at up to 3.0 ATA through a hood assembly system. OxyHealth prioritizes fast delivery and can ship and install the chamber within 10 business days. The Fortius420 EXP has been designed keeping in mind the safety protocols and high industry standards to ensure that the chamber stays functional for years to come.

• Up to 3.0 ATA (29 psi) operating pressure capabilities
• Mirrored interior/external controls for physician use and patient self-treatment
• Variable treatment pressures
• Tamper-proof redundant pressure regulators
• Adaptable ports for eternal medical pass-through devices
• Reinforced steel construction with handsome powder coated baby blue finish
• Manufactured with nontoxic, medical grade components
• Custom fit contoured mattress
• Portable and simple to move
• Split sections can easioly go through standard 36" doorway.

Steel  Windows

Thickness                .25 in (.63 cm)          1.25 in (3.17 cm)

Grade                       70                              Poly Carbon

Type                          516 - Hybrid Alloy

Tensil Strength      70,000 lbs (31,751 kgs)

Hard Shell Chamber: 1100 lbs (499 kgs)

Compressor: 37 lbs (16.78 kgs)

Length: When bolted together it is 64 in in length (2 – 32in sections) with additional 32 inch

center sections available upon order

Shell Diameter: 42 inch

Door Diameter: 28 inch
